MaxiBAS BT608

The BT608 is a touchscreen Battery & Electrical System analyzer that applies Adaptive Conductance, an advanced battery analysis method that produces a more accurate examination of the battery’s cold cranking ability and reserve capacity, vital to determining a battery’s true health. The BT608 can display a quick health status of the existing battery, register a new battery and perform advanced battery and electrical system diagnostics. The BT608’s VINscan function enables quick identification of the vehicle and battery specifications. Read/Clear codes on all available vehicles systems. Print or share customized reports via Wi-Fi or print test reports via the built-in thermal printer.


  • image 1

    Support in-vehicle and out-of-vehicle testing of passenger vehicle batteries



    Test 12-volt batteries: 100 - 3000 CCA



    Test 12-volt cranking/charging systems



    Test Flooded, AGM, AGM Spiral, EFB and GEL batteries



    Compatible with CCA, CA, SAE, EN, IEC, DIN, JIS and MCA



    One-touch Battery registration



    Quick display of battery specifications through battery barcode scan, Auto and manual VIN entry



    Illustration instruction guides for battery positioning and testing



    Print test reports via built-in thermal printer



    Read and erase codes of all available systems


ItemDescription
Operating SystemAndroid 9.0
Screen Display5.5'' LCD touch   screen with 720*1280 resolution
Storage32 GB
ConnectivityWi-Fi (802.11   a/b/g/n/ac)
USB 2.0 , Type C
 BT5.0+EDR
Camera8 Megapixel
Input Voltage5V DC
Working Current< 450 mA at   7.7 V DC
Internal Battery7.7 V, 3000 mAh
CCA Range100 to 3000 A
Voltage Range1.5 to 16V
Working Temperature0° to 50° C (32° to 122° F )
Storage Temperature-10° to 60° C   (14° to 140° F )
Dimension (L x W x H)204 mm (8.03”)   x 90 mm (3.54”) x 32 mm (1.25”)
Weight510 g (1.12   lb.)


Autel MaxiBAS BT608 - Complete Starting & Charging System Tester

  • Description
  •     Support in-vehicle and out-of-vehicle testing of passenger vehicle batteries



        Test 12-volt batteries: 100 - 3000 CCA



        Test 12-volt cranking/charging systems



        Test Flooded, AGM, AGM Spiral, EFB and GEL batteries



        Compatible with CCA, CA, SAE, EN, IEC, DIN, JIS and MCA



        One-touch Battery registration



        Quick display of battery specifications through battery barcode scan, Auto and manual VIN entry



        Illustration instruction guides for battery positioning and testing



        Print test reports via built-in thermal printer



        Read and erase codes of all available systems


  • Specifications
  • ItemDescription
    Operating SystemAndroid 9.0
    Screen Display5.5'' LCD touch   screen with 720*1280 resolution
    Storage32 GB
    ConnectivityWi-Fi (802.11   a/b/g/n/ac)
    USB 2.0 , Type C
     BT5.0+EDR
    Camera8 Megapixel
    Input Voltage5V DC
    Working Current< 450 mA at   7.7 V DC
    Internal Battery7.7 V, 3000 mAh
    CCA Range100 to 3000 A
    Voltage Range1.5 to 16V
    Working Temperature0° to 50° C (32° to 122° F )
    Storage Temperature-10° to 60° C   (14° to 140° F )
    Dimension (L x W x H)204 mm (8.03”)   x 90 mm (3.54”) x 32 mm (1.25”)
    Weight510 g (1.12   lb.)


  • Video
  • Autel MaxiBAS BT608 - Complete Starting & Charging System Tester

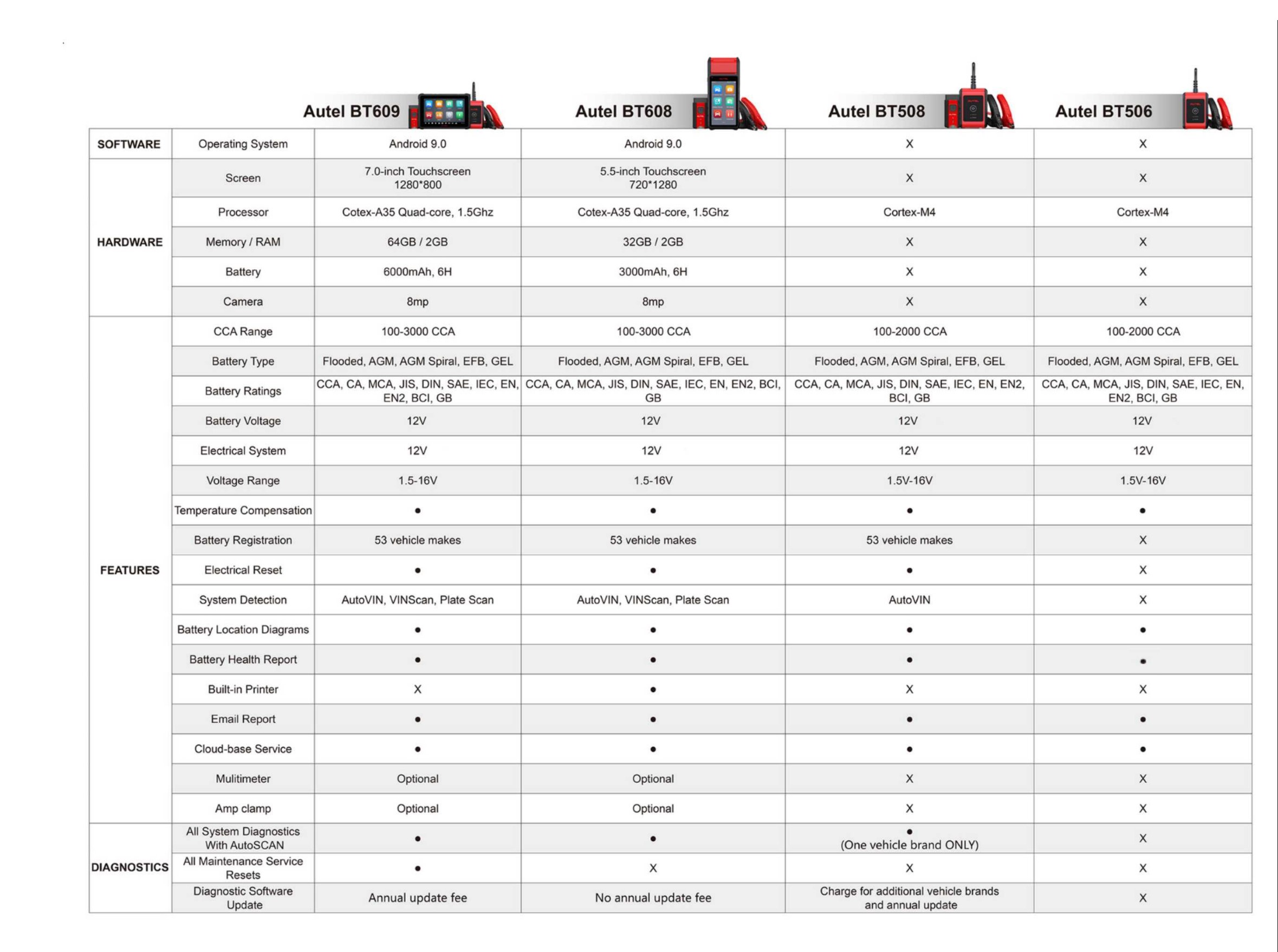

  • Comparison
