MaxiIM IM608 PRO

OBD2 Diagnostics And Key Fob Programmer With JVCI Tool Bundle

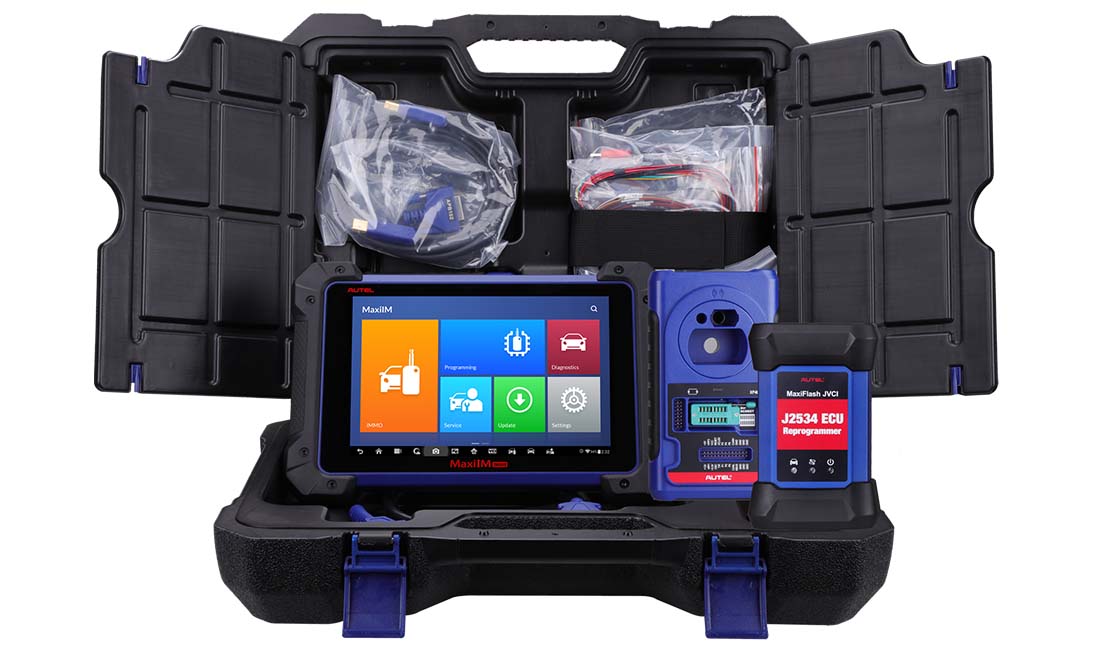

MaxiIM IM608 PRO is the most advanced and unique all in one key programming and diagnostic tool that combines advanced key programming, all systems diagnostics, and advanced services in one Android based 10.1-inch touchscreen tablet. It is equipped with XP400 PRO key programmer and MaxiFlash ECU programmer to provide complete coverage of IMMO and programming functions. IM608 PRO provides you with all special functions to quickly diagnose all modules for the majority of the makes and models on the market. It is the unprecedented key programming and diagnostic tool that you ever wanted.




  • image 0
  • image 0
  • image 0

• Samsung Exynos 5260(2GB ROM)


• 10.1”1024x768 LCD capacitive touchscreen


• Internal reliable 64GB Memory


• Android Operating System for fast boot-up and multitasking


• Powerful combination of key programming/all system diagnostics/advanced maintenance services


• Smart Mode for guided and automated key learning


• Expert Mode for advanced key learning


• Read PIN/CS (all key lost) , key generation, key learning, remote learning


• IMMO ECU reset/adaptation, refresh/coding


• Transpronder read/write, EEPROM/MCU read/write



• Powerful OE level diagnostics for more than 80 US, Asian and European makes and models


• Advanced maintenance services including EPB, DPF, SAS, Oil reset, and BMS

Operating SystemAndroid™ 4.4.2, KitKat
ProcessorSamsung Exynos hexa-core Processor (1.3GHz Quad-core ARM Cortex-A7 + 1.7GHz Dual-core ARM Cortex-A15)
Memory2GB RAM & 64GB On-board Memory
Display10.1-inch LED capacitive touch screen with 1920x1200 resolution
Connectivity

Wi-Fi (802.11 a/b/g/n/ac)

USB: 2.0

BT v.2.1 + EDR

SD Card (Support up to 32GB)

HDMI

SensorsGravity Accelerometer, Ambient Light Sensor (ALS)
Power and Battery

15000 mAh 3.8 V lithium-polymer battery

Charging via 12 V AC/DC power supply with the temperature between 0°C and 45°C
Input Voltage12 V (9-24 V)
Power Consumption6.5 W
Operating Temp0 to 50°C (32 to 122°F)
Storage Temp-20 to 60°C (-4 to 140°F)
Dimensions (WxHxD)300 mm (11.81”) x 220 mm (8.66”) x 50 mm (1.97”)
Weight

NW: 1.42 kg (3.13 lb.)

GW: 8.655 kg (19.08 lb.)

Protocols


ISO 9142-2, ISO 14230-2, ISO 15765-4, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, CAN ISO 11898, Highspeed, Middlespeed, Lowspeed and Singlewire CAN, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP 2.0, TP 1.6, SAE J1939, SAE J1708, Fault-Tolerant CAN
  • IM608PRO & IMKPA Key Programming Adapter Set Webcast Training

  • Autel IM608 Pro Introduction and Unboxing | Key programming

  • Need a new Honda key? Follow these tips and get a new key fast!

  • Autel IM608 Pro | Make a car key without original one | Key programming

  • How to program a new on Mercedes-Benz | Autel IM608 Pro

  • Lost all keys? 5 minutes to get your lost Mercedes Benz car keys replaced!

  • How to do EEPROM Programming with a Porsche

˜ Standard Functions  ™ Need extra adapters  ¯Available when connected to XP400 Pro

IM508IM608 PRO
COMPARISON   CHART
Smart Mode   (Guided and Automated Key Learning Function)˜            ˜
Expert Mode   (Advanced Key Learning)˜            ˜
Auto Detect   Make/Model/Year/System˜            ˜
Read PIN   (All Key Lost)˜            ˜
Key   Generation˜            ˜
Key Learning˜            ˜
Remote   Learning˜            ˜
IMMO ECU   Reset/Adaption˜            ˜
IMMO ECU   Refresh/Coding˜            ˜
Backup/Restore   IMMO Data˜            ˜
BENZ 3rd   Generation IMMO Add Key, All Key Lost via OBD¯            ˜
Read/Write/Erase   Benz ESL_W209 / W906 Data¯            ˜
Benz OE NEC   Key Learning¯            ™
AUDI   Q5/A4/A5 2015-2017 Key Learning via OBD¯            ™
Volkswagen   MQB Key Learning via OBD˜            ˜
BMW FEM/BDC   Key Learning and Adaption˜            ˜
BMW CAS4 Key   Learning¯            ˜
BMW EWS3 Key   Learning¯            ™
2015-2018   Land Rover&Jaguar Write Key via Dump¯            ˜
Volvo Smart   Key/Fobik Smart Key Learning¯            ˜
Volkswagen/AUDI/BMW   Key Unlock¯            ™
Programming
EEPROM   Read/WriteBasicAdvanced
MCU   Read/WriteBasicAdvanced
Key   ProgrammingBasicAdvanced
Mercedes   Infrared Key Read/Write¯            ˜
Remote   Frequency Detection¯            ˜
OE-Level   Diagnostics
All Systems   for Over 80 Makes˜            ˜
MaxiFlash   JVCI (J2534 ECU Reprogrammer)
˜
Advanced   Service Functions
Oil Serive   Reset˜            ˜
Parking   Brake Pad Relearn After Replacement˜            ˜
Steering   Angle Sensor Relearn˜            ˜
Battery   Registration and Reset˜            ˜
Diesel   Particulate Filter Regeneration˜            ˜
Tire   Pressure Monitoring System˜            ˜
Active Test
˜
ECU Coding
˜
Complete   Service FunctionsBasicAdvanced
Features
Built-in   Rechargeable Li-ion Battery5000 mAh15000 mAh
Internet   updatableWi-FiWi-Fi
Multilingual   Support˜            ˜
Limited One   Year Warranty˜            ˜
Touchscreen   7-inch 10.1-inch7-inch10.1-inch
Memory32 GB64 GB
ProcessorQuad-core processorHexa-core processor
Camera
8.0 Megapixel
Resolution 1024x6001920x1200

Note: XP400 Pro can be purchased separately.

Some listed functions are manufacture dependent. Constantly update MaxiIM for current vehicle coverage. Update software on a regular basis to get the latest tool features.
