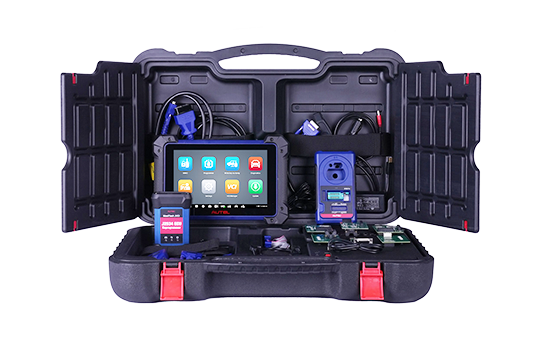

MaxiIM IM608ProⅡ/IM608SⅡ/IM608Ⅱ

IM608ProⅡ/IM608SⅡ/IM608Ⅱ is a 10.1-inch, Android-based touchscreen tablet with advanced key and immobilizer programming capabilities, comprehensive diagnostic features, functions and tests, and an extensive service menu. The IM608PROII  excels in key programming, supporting OBD key programming for 80% of the vehicles on the road today. Equipped with Autel's Remote Expert feature, users can connect remotely with experienced experts ready to assist with any diagnostic problem directly from their tablet.Additional key and immobilizer functions include Key generation, key and remote learning, immobilizer reset, refresh, and coding, and transponder and EEPROM/MCU read and write. Installed with a fast octa-core processor, the IM608ProⅡ provides you with all special functions to quickly diagnose all system modules for the majority of vehicle makes and models. The tablet offers an extensive service menu, including the 40 most common maintenance tasks and cloud-based report sharing.

Note:

1.Remote expert is not available in the North American region;

2.Specific models may vary by region.

3.MaxiIM IM608ProⅡ/IM608SⅡ/IM608Ⅱ is specifically designed for legal automotive repairs. This requires users to have legitimate access to the vehicle, either by legally having the vehicle key, or having the vehicle owner’s permission using the key.

  • image 1
  • image 1
  • image 1
  • image 1

• Smart Mode for guided and automated key learning


• Expert Mode for advanced key learning


• Read PIN/CS (all keys lost) , key generation, key learning, remote learning



• IMMO ECU reset/adaptation, refresh/coding



• Transpronder read/write, EEPROM/MCU read/write


• Advanced, OE-Level Diagnostics for U.S., Asian, and European vehicles.


• Extensive maintenance/services menu, including direct-access to EPB, DPF, SAS, Oil Reset, and BMS functions


• Equipped with Autel Remote Expert capbility. Connect remotely with experienced experts ready to assist you with any diagnostic problem.


• All maintenance reports stored in the cloud, allowing you to view device and test records anytime, anywhere


• Qualcomm Octa-core Processor (2.2GHz)


• 10.1-inch LCD touchscreen with 1920 x 1200 resolution


•  128GB Storage Memory


• Android 10 Operating System for fast boot-up and multitasking


Operating   SystemAndroid 10
ProcessorQualcomm SDM660 Octa-core Processor (2.2GHz )
Memory4GB RAM &128GB On-board Memory
Display10.1-inch LED capacitive touchscreen with 1920x1200 resolution
ConnectivityWi-Fi(802.11a/b/g/n/ac)
USB 2.0
SD Card (Support up to 64GB)
SensorsLight sensor for brightness auto adjust
Power and Battery15000 mAh 3.8 V lithium-polymer battery Charging via 12 V AC/DC power supply with the temperature between 0°C and 45°C
Input Voltage12V (9-24 V)
Power Consumption6.5W
Operating Temp0 to 50°C (32 to 122°F)
Storage Temp-20 to 60°C (-4 to 140°F)
Dimensions(WXHX D)300 mm (11.81”) x 220 mm (8.66”) x 50 mm (1.97”)
WeightNW: 1.58 kg (3.48 lb.)
ProtocolsISO 9142-2, ISO 14230-2, ISO 15765-4, K/L-Line, Flashing Code,   SAE-J1850 VPW, SAE-J1850 PWM, CAN ISO 11898, Highspeed, Middlespeed, Lowspeed   and Singlewire CAN, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol,   TP 2.0, TP 1.6, SAE J1939, SAE J1708, Fault-Tolerant CAN



IM508IM508SIM608 PROIM608ProⅡ/IM608SⅡ/IM608Ⅱ
Features



ProcessorQuad-coreQuad-coreHexa-coreOcta-core
Touchscreen7-inch7-inch10.1-inch10.1-inch
Resolution1024x6001024x6001920x12001920x1200
Memory32GB64GB64GB128GB
Rechargeable Li-ion Battery5000 mAh5000 mAh15000 mAh15000 mAh
Internet UpdatableWi-FiWi-FiWi-FiWi-Fi
CameraNONO8.0 Megapixel16.0 Megapixel
ConnectionOBD   CableOBD   CableJVCIJVCI+
ProgrammerXP200XP200XP400PROXP400PRO
Weight0.78   kg0.78   kg1.48   kg1.58   kg
Remote ExpertNONONOAdvanced
Device/Report   ManagementYesYesYesYes
Programmer Function
    (Note: requires the use of the  XP400   PRO and applicable accessory)




Reading/Writing EEPROMYesYesYesYes
Reading/Writing MCUYesYesYesYes
Reading/Writing Engine ECUYesYesYesYes
Reading/Writing IMMO ECUYesYesYesYes
Universal Key Information DetectionYesYesYesYes
Write key to ECU by programmerYesYesYesYes
Key UnlockingYesYesYesYes
Frequency DetectionYesYesYesYes
Keytool   Functions



Universal key generationYesYesYesYes
Chip Simulation (Requires the use of the Autel APB112)YesYesYesYes
Diagnostic   Functions



Auto VINYesYesYesYes
Reading/ Erasing codesYesYesYesYes
Read Live DataYesYesYesYes
Read Freeze DataYesYesYesYes
Read ECU informationYesYesYesYes
Active TestYesYesYesYes
Service FunctionYes(40+service functions)Yes(40+service functions)Yes(40+service functions)Yes 40+service functions)
Special FunctionYesYesYesYes
Online CodingNoNoYes   (Mercedes-Benz vehicles are not covered)Yes (Mercedes-Benz vehicles are not covered)
Offline CodingNoNoYesYes
Hidden FunctionNoNoYes.   (Mercedes-Benz vehicles are not covered)Yes.  (Mercedes-Benz vehicles are not covered)
Guided FunctionNoNoYes.   (Mercedes, BMW, JLR  vehicles are not   covered))Yes.  (Mercedes, BMW, JLR vehicles are not covered)
Offline ProgrammingNoNoYesYes
Cloud ServiceReport   ManagementReport   ManagementReport   ManagementReport Management
OtherRemote Desk
CANFD(Adapters required)

Remote Desk
CANFD(Adapters required)

Remote Desk
 DoIP(Adapters required)
 CANFD(Adapters required)
SCAN VIN

SCAN License

Remote Desk

DoIP
CANFD


Note: XP400 Pro can be purchased separately.

Some listed functions are manufacture dependent. Constantly update MaxiIM for current vehicle coverage. Update software on a regular basis to get the latest tool features.
